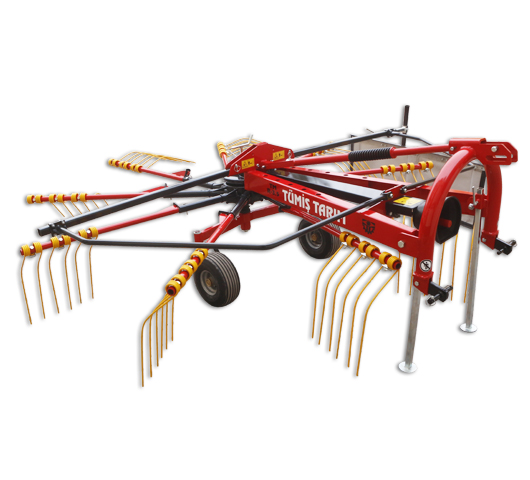

Rotary Hay Rake
TM-R 3.5 is designed to form cut forage crops into uniform windrows, making baling and collection easier. The machine connects to the tractor via a three-point linkage.
Its wide working area, nine-arm rotor and three spring tines on each arm help collect cut material evenly from the field surface.
TM-R 3.5 helps collect cut hay at regular intervals, form uniform windrows and prepare the material for subsequent baling or collection.
| Technical specification | TM-R 3.5 |
|---|---|
| Working width | 3.50 m |
| Rotor width (diameter) | 3.10 m |
| Number of arms | 9 |
| Spring tines per arm | 3 |
| Tyre size | 15 x 6.00 - 6 |
| Tractor engine power | 35 HP |
| PTO speed | 540 rpm |
| Minimum transport width | 1.25 m |
| Minimum transport height | 2.45 m |
| Length | 2.40 m |
| Weight | 345 kg |
Technical values are taken from the catalogue table in the TÜMİŞ TM R-3.5 Hay Rake Operator's Manual.
Before operation, connections, guards, tyres, PTO shaft and moving parts must be checked. Adjustment, cleaning, lubrication and maintenance must only be performed after the tractor is stopped and all moving parts have come to a complete stop.
Contact TÜMİŞ for information about product supply, delivery and spare parts options.
