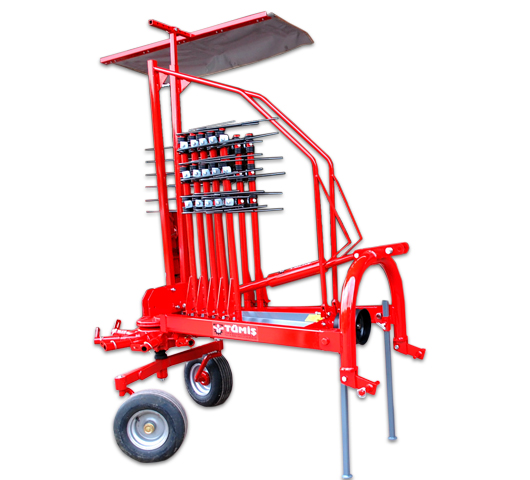

TM-R 330

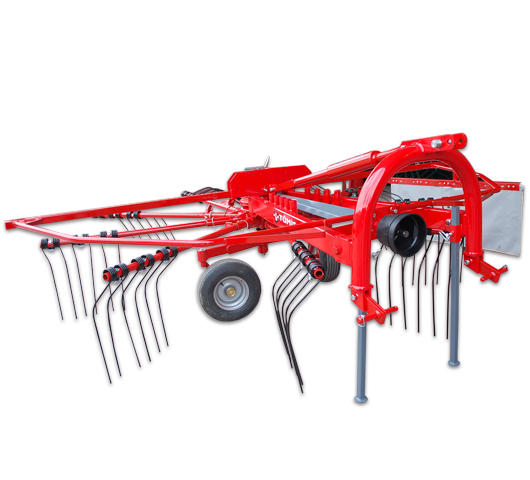

TM-R 330 is designed to form cut forage crops into windrows, making baling and collection easier. The machine connects to the tractor via a three-point linkage.

The model code in the technical catalogue is TM-R 330-9 . Nine rotor arms and three spring tines on each arm help form a uniform and continuous windrow.

Working width: 3.30 m
Transport width: 1.50 m
Rotor arms: 9
Spring tines per arm: 3
Tractor power requirement: 45 BG
Weight: 360 kg

Request a Quote Open PDF Brochure

Collection and Windrow Formation

Helps collect cut hay at regular intervals, form uniform windrows and prepare the material for subsequent baling or collection.

Connects to the tractor via a three-point linkage.
Features spring tines operating on nine rotor arms.
Designed to form a uniform and continuous windrow during operation.

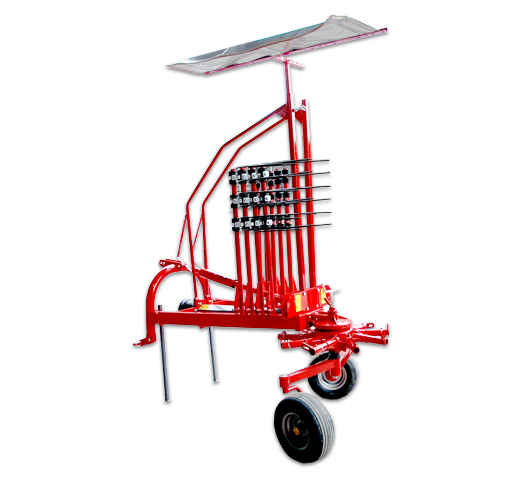

Can be reduced to a width of 1.50 m in transport position.

Technical specification	TM-R 330-9
Working width	3.30 m
Transport width	1.50 m
Number of rotor arms	9
Spring tines per arm	3
Tractor power	45 BG
Weight	360 kg

Technical values are taken from the specification table in the TÜMİŞ TM-R 330-9 Operator's Manual.

Safe Operation and Regular Inspection

Before operation, connections, guards, tyres and moving parts must be checked. Adjustment, cleaning, lubrication and maintenance must only be performed after the tractor is stopped and all moving parts have come to a complete stop.

Check that the three-point linkage connections are correctly and securely attached.
Check loose bolts, nuts and fasteners before operation.
Inspect the rake tines, rotor arms and guards regularly.
Follow the intervals specified in the product manual for lubrication and maintenance.
Stop the tractor and prevent machine movement during maintenance.

Download Operator's Manual
